If you manage a commercial car park, retail estate, or private workplace, providing accessible parking is not just a courtesy - it's a strict legal requirement under the Equality Act 2010. Failing to provide adequate, clearly marked disabled parking spaces can leave your business vulnerable to discrimination claims or reputational damage.
But how big does a disabled bay actually need to be? And what is the fastest way to mark it out so it lasts?
Whether you are a facilities manager auditing your site or a civil contractor laying out a new car park, this guide covers the exact UK legal dimensions, layout rules, and the heavy-duty thermoplastic materials you need to get the job done right the first time.
What are the Legal Dimensions for a UK Disabled Parking Bay?
Standard UK parking bays are simply too narrow for wheelchair users to safely open their doors fully and deploy transfer aids or ramps. To comply with British Standard BS8300, a disabled parking bay must include the standard vehicle space plus a dedicated safety transfer zone.

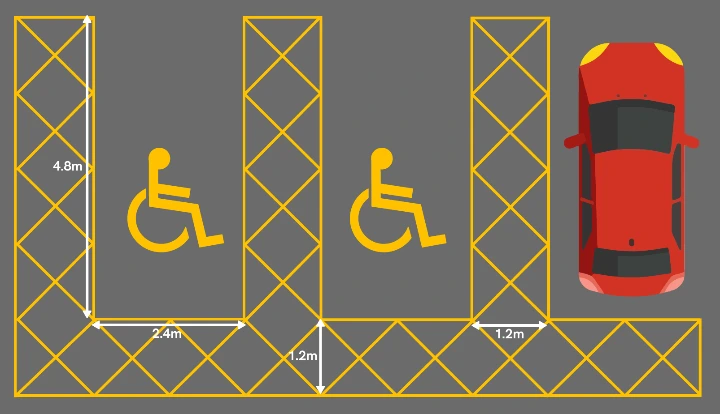

The official dimensions for an off-street disabled parking space are:
The Standard Bay: 2400mm wide by 4800mm long.
The Access Zone (Hatching): An additional 1200mm wide safety zone marked with cross-patterned stripes.
Disabled Bay Layout Tips: The 1200mm access zone must run along at least one side of the bay (for side-loading) and at the rear of the bay (for boot/hoist access). If you are placing multiple disabled bays next to each other, they can share a central 1200mm side access zone to save space.
How Many Disabled Bays Does My Car Park Need?
While there is no single statutory number for every private car park, the Department for Transport (DfT) provides strict guidelines based on your facility type:
Workplaces & Business Premises: A minimum of 5% of the overall car park capacity should be designated as disabled bays (plus one dedicated space for each disabled employee).
Shopping, Leisure & Recreation: A minimum of 6% of the overall capacity (or at least 3 bays, whichever is greater).
How to Mark a Disabled Bay (Thermoplastic vs. Paint)
The biggest mistake contractors make when marking disabled bays is using cheap liquid car park paint. The 1200mm cross-hatched access zone requires a lot of line work. Hand-painting or stenciling these hatch lines is messy, takes hours to dry, and fades quickly under heavy tire friction.
Thermmark’s Preformed Thermoplastic Markings melt directly into the tarmac using a standard gas torch. It takes a fraction of the time to install, delivers sharp, factory-straight edges, and lasts up to 10 times longer than standard paint.
The 3-Step Installation Guide
Step 1: Outline the Bay and Hatching Use our continuous 100mm Yellow Thermoplastic Rolls to create the 2400mm x 4800mm perimeter. Cut the rolls to size to create the diagonal cross-hatching inside the 1200mm access zone. Yellow is the UK industry standard for private off-street disabled bays as it provides high visual contrast against dark tarmac.
Step 2: Apply the International Symbol of Access To be legally compliant, the bay must feature the wheelchair icon. Place our Preformed Disabled Bay Symbol directly in the centre of the 2400mm box. Because it is pre-cut to official highway proportions, you eliminate the risk of a messy, distorted hand-painted stencil.
Step 3: Heat and Seal Ensure the tarmac is clean and dry. Apply even heat using a propane gas torch until the thermoplastic melts and fuses with the aggregate of the surface. The bay is slip-resistant and ready to be driven on within 5 to 10 minutes.
Disabled Bay Compliance Bundle: What to Buy
Stop worrying about fading paint and compliance failures. Order exactly what you need to mark a BS8300-compliant bay today.
100mm x 5m Yellow Thermoplastic Rolls (For the perimeter and cross-hatched access zones)
Standard Preformed Disabled Wheelchair Symbol (Pre-cut, heat-applied icon)
Thermoplastic Primer / Tack Coat (Required only if applying the bay onto concrete or old, polished block paving)
Heavy-Duty Rubber Wheel Stoppers (Optional: Install at the front of the bay to prevent vehicles overhanging onto pedestrian pavements)
Conclusion
Disabled parking spaces are more than just a legal obligation; they represent a crucial aspect of making public and private spaces more accessible for everyone. From the distinct bay lines to the wider, more accessible bays, these spaces allow individuals with disabilities to maintain their independence and access services with ease. In a world that’s increasingly focused on inclusivity, making sure that disabled parking spaces are clearly marked, accessible, and maintained is a responsibility that all car park operators and designers must take seriously.
By ensuring that disabled parking spaces are well-designed and clearly marked, we create a more inclusive society where everyone has the ability to access the resources and spaces they need.
